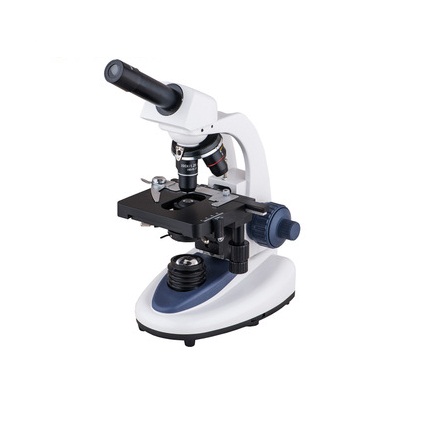

XSP-300D Monocular Biological Microscope

XSP-300D Monocular Biological Microscope

Total Magnification  40X~1600X

The XSP-300 Series Biological Microscopes are equipped with

stable frame, and it can fit monocular, binocular, trinocular head on it.

Double layer mechanical stage, with adjustable long handle and coaxial

coarse/fine focus knob make the operation easily. It is built with high quality

achromatic objectives, wide field eyepiece and halogen lamp with adjustable

brightness, which shall guarantee for a  image. With excellent performance and

competitive price, the XSP-300 Series Biological Microscopes has been

widely applied in schools and universities, medical, health, forestry

and agriculture etc.research institutes and departments.



General Specifications



Components	Specifications
Total Magnification	40X to 1600X
Wide Field Eyepiece	WF10X (WF16X Optional)
Achromatic Objective	4X/0.10, 10X/0.25, 40XS/0.65, 100XS/0.85
Eyepieces Head	Monocular Head
Mechanical Tube Length	160mm
Filter Diameter	32mm
Nosepiece	Quadruple Nosepiece
Stage	115mmX125mm
Condenser	Abbe.NA1.25
Diaphragm	Iris Diaphragm
Coarse/Fine Focal Range	30mm
Illumination	LED lamp 1W 220/110V (LED 3W and Halogen lamp optional)
Power	100-240V, 50/60 Hz
Net Weight	4KG
Gross Weight	4.5KG



XSP-300D Monocular Biological Microscope

Structure Details
