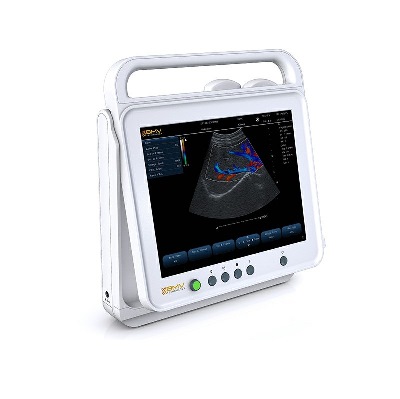

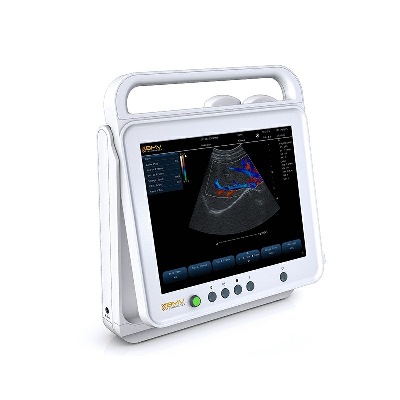

PT50C Touch Color Doppler Ultrasound Scanner System
R152.02 Ex VAT
PT50C Touch Color Doppler
Applicable to different body scans, for example, Abdomen,Obstetrics,Gynecology,Cardiology,Small
Parts,Urology,Kidney,MSK(Musculoskeletal);Carotid; Orthopedic; Vascular
• and varied user environment. Ultrasonography, emergency, operating room, ICU, ward and out‐call,
etc
PT50C Touch Color Doppler Ultrasound Scanner System
PT50C Touch Color Doppler Ultrasound Scanner System
Description
An entry-level fully-featured touch Color Doppler ultrasound system, PT50C employs the advanced technologies and ergonomic concept developed for next generation imaging systems, in all applications. Simple touch to save time, this simple operation helps enhance exam productivity and increase patient throughput, also minimize most of users learning curve. In additional, PT50C is the most lightweight hand-carried portable ultrasound with three probe ports in the world, deliver superb image quality in many clinics, hospitals or practice settings across multiple examinations.
Key Features:
- 15 inch high resolution, wide-angle color LCD with 45 degree tilt functionality
- Three transducer port is designed to meet the different clinical applications
- Advanced imaging technology and superior image quality can provide fast and precise scanning.
- Replaceable long life battery
- iBscan™ Quick Image Optimization
- Annotation library for quick comment
- iBstation™ Patient information management system
- USB image transfer and software upgrade
- Image clipboard for thumbnail view
- The supported DICOM 3.0 can communicate with PACS system of the hospital seamlessly
- Special-designed probe holder, no need for extra assistance
- Modular software, easy for upgrade, free lifetime upgrade to new versions
Specification
Application scenarios: Emergency,Ward bedside,Anesthesia guidance,Outpatient clinics,Health checkup,Disaster preparedness,Remote ambulance,ICU / CCU,Intraoperative,Pain management,Epidemic to the countryside,Infectious cluster ambulance
Ultrasound platform: Based on Linux, stable performance, security data
Touch Screen: Fully resistive touch screen
Physical channels: 32 channels
Transducer: 128 elements, 2-12Mhz
Transducer connector: 3 active, unique micro connector
Battery Working time: Continuous scan greater than 5 hours with 2 batteries, replaceable battery design
Technology Descriptions: Wide-angle imaging, Panoramic focusing technology, Rolling M technology, Cloud processing technology, Noise suppression, Image enhancement
Simplified Workflow: Zoom, iBscan™, iBstation™, DICOM3.0
Ergonomics: 15’ high resolution LCD Monitor; Adjustable LCD view angle; Convenient cable &probe hook
Size& Net weight: Height: 402 mm Width: 385mm Depth: 53mm, approx. 4.8 kg
Connection Port: WIFI,2*USB,S-Video ,HDMI
Optional: Trolley Cart, Needle-guided brackets,Transducer,Wheeled Transport case, DICOM 3.0, Video printer,Optional Warranty
Warranty: 12 months warranty since ex-factory date
| Application: | • Applicable to different body scans, for example, Abdomen,Reproduction,Gynecology,Cardiology,
Small Parts,Urology,Kidney,MSK(Musculoskeletal);Carotid; Orthopedic; Vascular |
| • Clinic departments, for example emergency, hospitals, clinics, out calls, etc. | |
| Imaging Modes: | B,M,2B,B/M,4B,C,PW,POWER, DIR POWER, THI |
| Gray scale levels: | 256 |
| Transducer Type: | Convex Array,Linear Array,Endocavity Array |
| Transducer frequency: | 2-12Mhz |
| Transducer connector: | 3 active transducer connector ports |
| Scanning depth: | up to 351mm |
| Standard Features | An ideal choice for fully-featured touch COLOR DOPPLER system
With a -in-class combination of performance and affordability With a new platform based on Intel’s powerful processor With latest imaging technologies and convenient workflow options, simple touch, save time! |
| Language | Software: English, Chinese, Spanish,Russian,Italian, and more
Keyboard Input: English, Chinese, and more User Manual: English, Chinese |
