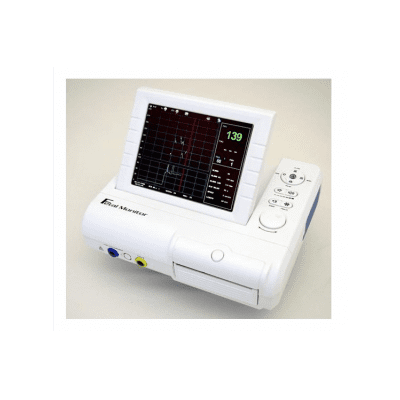

Doppler Foetal Cms800G 8.4″ – Optional Twins

FETAL MONITOR POP UP SCREEN – CMS800G

– Light weight, space-saving, easy to use

– 8.4″ LCD screen, folding 60 degree

– Display waveforms and digitals simultaneously

– FHR 120-160 normal area highlight

– 12 hours data and waveform storage and review

– FHR upper and lower limit alarm

– Twins monitoring function option

– High sensitive 9 Elements 1 MHZ Pulse Doppler transducer

– Built-in PC Network can be connected to the central monitoring system



SPECIFICATIONS:

MODEL:	FETAL MONITOR CMS 800G
Display:	8.4” colour LCD display, 60 degree folding
Recorder: Record paper: Printing Width: Effective printing width: Printing speed: Record message:	Thermal printer Z-fold, thermal paper 112mm 104mm 1,2,3cm/min Data, time, TOCO Trend graph, paper speed, FHR type, FHR Trend graph etc
Signal interface	RJ 45 interface
FHR Technique: Ultrasound Frequency:	Ultrasound pulse Doppler and auto correlation 1MHz
FHR range:	50-210bpm
Resolution	1bpm
Accuracy:	± 2bpm
TOCO: Range: Resolution: Non-linear Error: Zero control:	0-100% 1% ≤±10% Manual
Fetal movement:	Manual fetal movement mark
Power Supply:	AC 100-240v, 50/60Hz P max=60VA
Dimensions:	320mm x 260mm x 80mm
Weight;	3.2kg
Quality Standard:	CE
