Multifunctional Water Baths Shaker, Shaking Water Bath
R110.41 Ex VAT

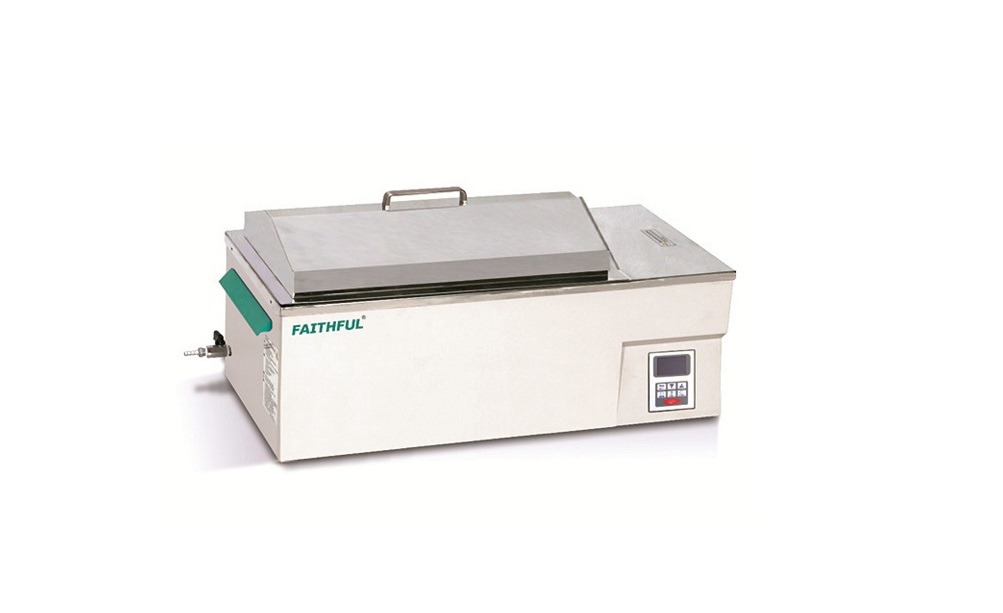

31L 100 Degree Multifunctional Water Baths Shaker
Multifunctional Water Baths Shaker： Large-screen background LCD, shows the measured value, set value and the setting time and the remaining time.
High-precision temperature control. Resume operation automatically if power off unexpectedly.
High–precision speed control: PID feedback control, motor speed stable and accurate. Slow start design, automatically locked after speed out of control, adjustable start speed
prevent splashing of shaking bottle liquid.
Multifunctional Water Baths Shaker, Shaking Water Bath
Multifunctional Water Baths Shaker, Shaking Water Bath
Product Description
1. Large-screen background LCD, shows the measured value, set value and the setting time and the remaining time.
2. High-precision temperature control. Resume operation automatically if power off unexpectedly.
3.High-precision speed control: PID feedback control, motor speed stable and accurate. Slow start design, automatically locked after speed out of control, adjustable start speed prevent splashing of shaking bottle liquid.
4. Tube rack and water bath flask seat for standard configuration, with function of water bath.
Main Technical Parameters
| Model | FWS-30 | |
| Mode | Reciprocating oscillation +
thermostatic water bath |
|
| Function | Operating Temp
Range |
RT~100ºC |
| Tem. Resolution
Ratio |
0.1ºC | |
| Tem. Motion | ±0.1ºC | |
| Tem. Uniformity | ±0.2ºC | |
| Reciprocal Oscillation
Amplitude |
16 or 24mm (Ex-factory is 24mm) | |
| Reciprocating Frequency
Range |
20~200(r/min) | |
| Reciprocating Frequency
Accuracy |
±1rpm | |
| Structure | Water Tank | Mirror stainless steel |
| Outer Shell | Cold rolling steel electrostatic
spraying exterior |
|
| Upper Cover | Mirror stainless steel | |
| Insulating Layer | Polyurethane | |
| Heater | Stainless Steel Heater | |
| Driving Mode | Crankshaft+ double link + four wheels | |
| Shelf | Mirror stainless steel | |
| Power rating | 1.5kW | |
| Controller | Tem. Control
Mode |
LCD PID Intelligent control |
| Reciprocating Control
Mode |
||
| Setting
Mode |
Touch button setting | |
| Tem. Display
Mode |
LCD Display | |
| Speed Display
Mode |
||
| Timer | 0~9999 min | |
| Operation Function | Fixed value operation, timing function,
auto stop, quickly stop start |
|
| Temperature Sensor | Pt100 | |
| Speed Sensor | Hoare | |
| Additional Function | Deviation correction, menu keys
locked, power-off memory |
|
| Safety device | over temperature alarm, menu locked, water full or
shortage protection, Motor shaft lock protection; |
|
| Specification | Water Tank Size
(W*L*H)(mm) |
500*310*200 |
| Exterior Size
(W*L*H)(mm) |
828*360*425 | |
| Packing Size
(W*L*H)(mm) |
908*440*505 | |
| Spring Shock Basket
Size(mm) |
395*250 | |
| Shock Basket Largest Single
Size (ml /piece) |
100ml*12/250*8/500*6 | |
| Inside Volume | 31L | |
| Shock Basket Bearing | 5kg/layer | |
| Current Rating (50Hz) | AC220V/6.8A | |
| NW/GW (kg) | 20/30 | |
| Accessories | Water bath flask seat, tube rack | |
