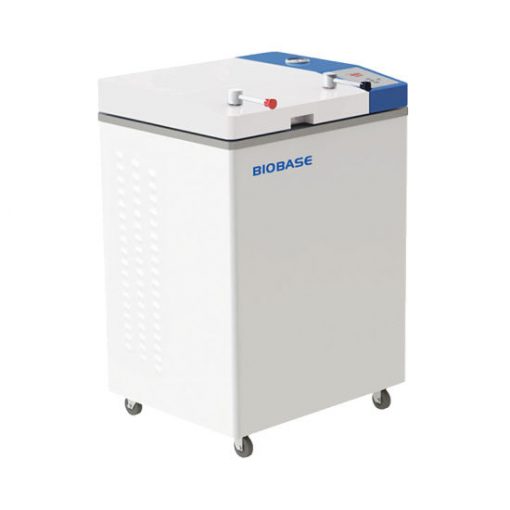

Vertical Autoclave Model Bkq-Z50I

Vertical Autoclave Model BKQ-Z50I

Autoclave Model BKQ-Z50I

Technical Features:

1. Complete protection system.

2. Flip-open door structure with spring booster, easy to open.

3. LED displays inner temperature, time and error codes.

4. Automatic exhausting steam function.

5. Reliable mechanical safety interlock feature.

6. External material: Cold rolled steel with anti-bacteria powder coating.

7. Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.

8. Door cover is wrapped completely, to prevent scald effectively.

9. Radial self-expanding silicone rubber seals with high effect and long using life.

10. Optional printer for recording sterilization data.

Autoclave Model BKQ-Z50I

Safety Features:

1. Over pressure, safety valve can automatically open to release pressure.

2. Over temperature, the system will stop heating automatically and start alarm.

4. Anti dry-out function. If water level is too low, heating stops and error code displays on screen.

5. Over current, over voltage or electric leakage protection apparatus-air switch.

Technical parameters:

Standard Accessories : Stainless steel basket*1pc

Power consumption : 3KW

Capacity : 50L

Chamber size : 385*515mm

Gross weight : 108 kg

Packing Size(mm) : 770*670*1060

Externalsize(W*D*H)mm : 610*645*850

Chamber size(φ*H) : 385*515mm

Chamber material	Polished SUS304 medical stainless steel
Max pressure	0.3MPa
Rated working pressure	0.22MPa
Max temperature	150ºC
Working temp range	105~134ºC
Temp. accuracy	±0.1ºC
Timing range	0-999min
Dynamic pulse exhaust time	0~9times
