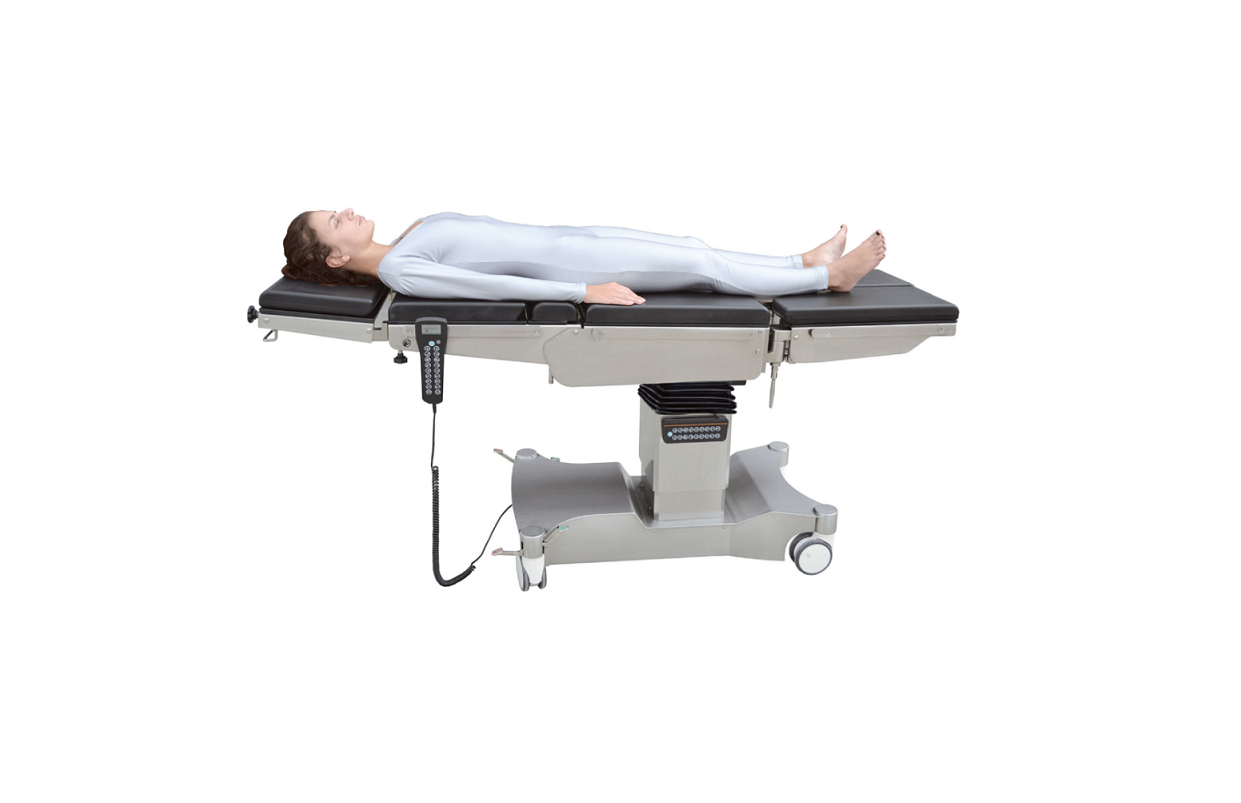

Hospital Electric Operating Theatre Table
| Technical Parameters | |
| Total length: | 2220mm(with additional footplate) |
| Total width: | 555mm(without side rail) , 600mm(with side rail) |
| Head section length: | 300mm |
| Back section length: | 380mm |
| Main section length: | 540mm |
| Leg section length: | 580mm |
| Supporting bottom size: | 1030x650x200mm |
| Castor size: | 125mm |
| Height adjustment range: | 700~1000mm |
| Kidney bridge rise: | ≥110mm |
| Sliding movement: | 350mm |
| Back section up: | 70° |
| Back section down: | 22° |
| Trendelenburg: | 24° |
| Re-trendelenburg: | 24° |
| Lateral tilt: | 22° |
| Leg section adjustment: | Up 15° Down 90° |
| Spread angle of leg plates: | 200° |
| Head section adjustment: | Up 40° Down 90° |
| N.W. Of overall table: | 350kgs |
| Patient Horizontal max loading weight: | 280kgs |
| Integrated battery: | Yes,for over 150 movements |
| Voltage | 220V 50Hz or 110V,60HZ for choice |
