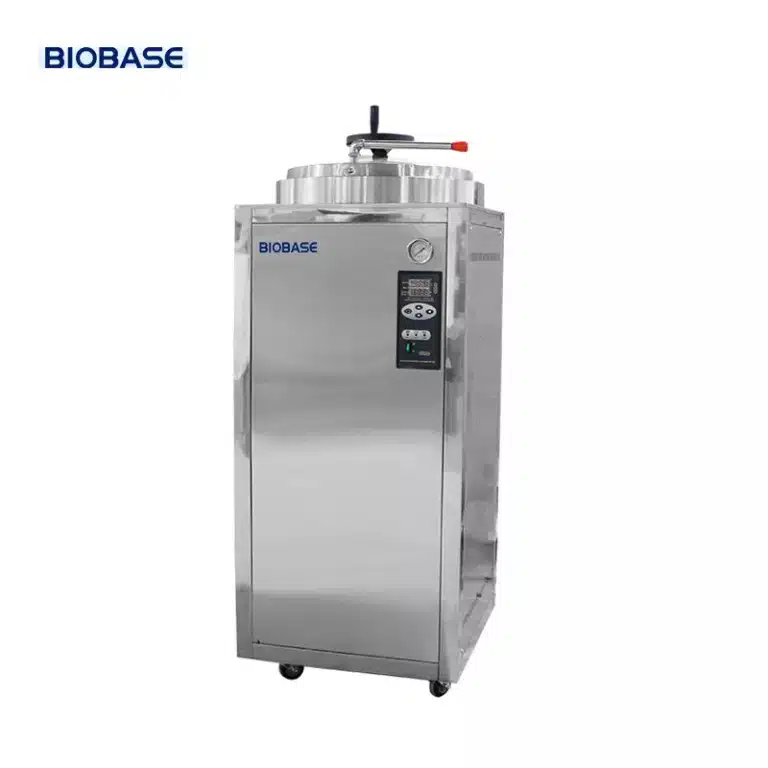

Autoclave, Top Loading, 200L

1. Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs
automatically.
2. LED screen displays all steps of full process as well as error codes.
3. Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
4. Adopting certain temperature (98~102℃) exhaust method and dynamic pulse exhaust method to completely
empty the cold air inside chamber for ensuring steam saturability.
5. Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
6. Inner stainless steel water tank for water and steam to circulate inside. Steam does not exhaust during
sterilization, so as to keep the outside clean and dry.
7. Independent quick service window, easy for repairing and maintenance.
8. Water inlet filter to keep high water quality.
9. Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.
10. Optional printer for recording sterilization data.

Over pressure: safety valve can automatically open to release pressure.

Over temeprature: the system will power off automatically.

Door swnsor: Sensor at door closing position, to check the door status.If door is open, operation will stop.

Anti dry out  function: If water level is too low, system will power off and error code displays on screen.

Over current: over voltage or elctric leakage protection apparatus-air switch.

Door cover: The door is covered with safety  shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.
