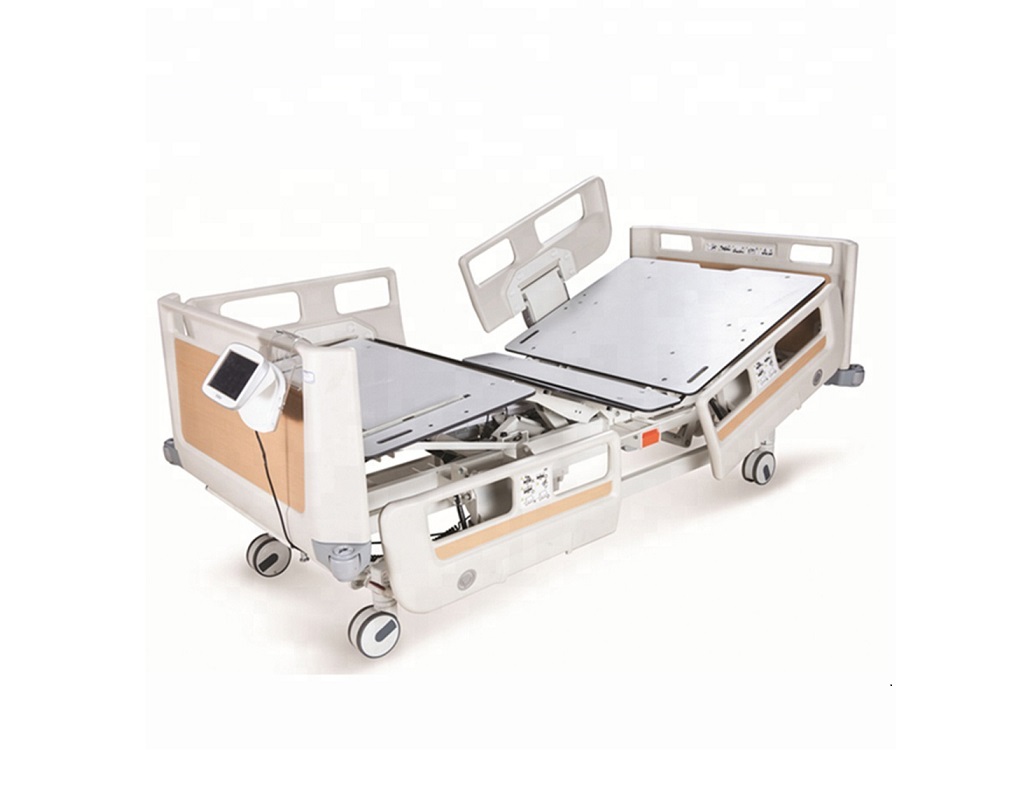

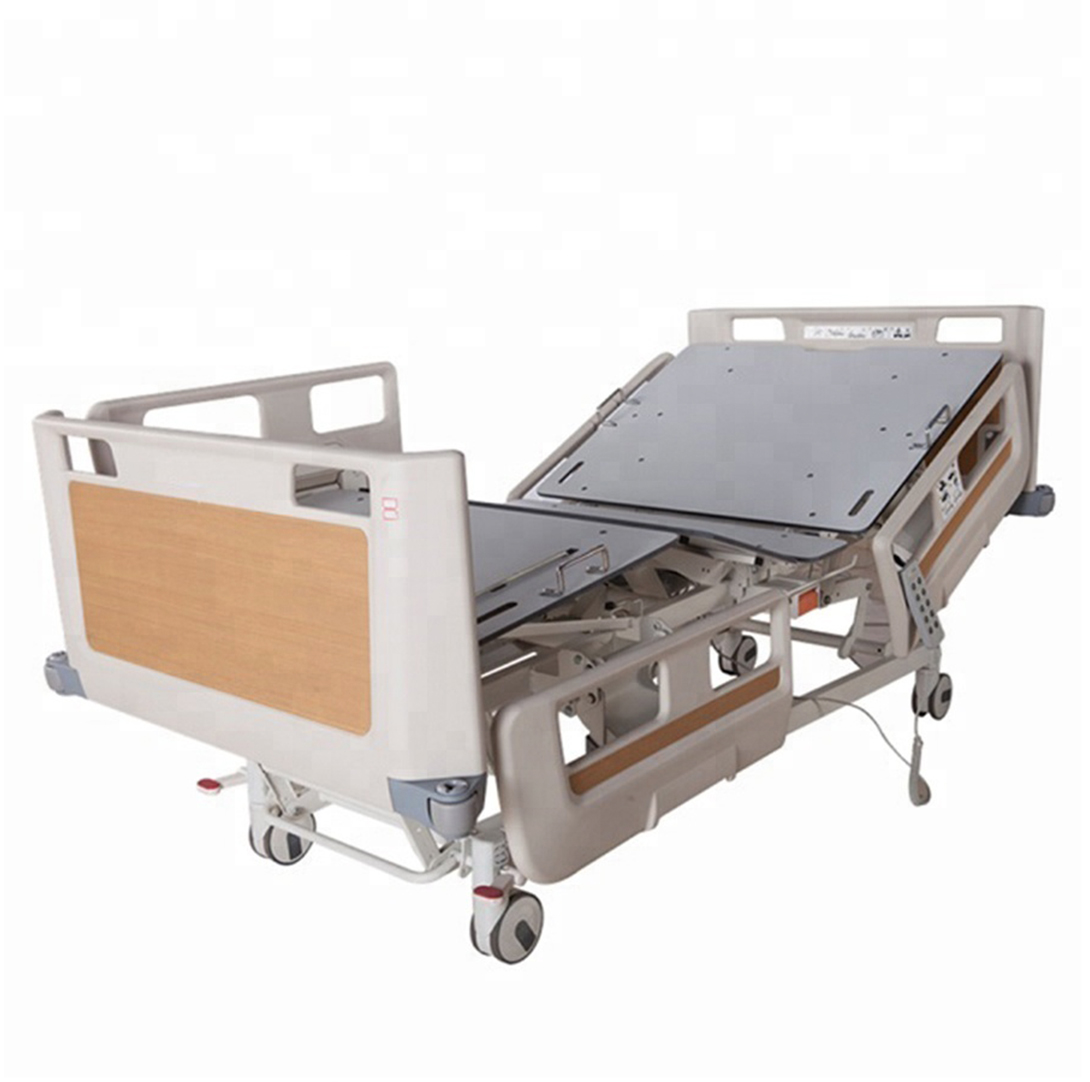

4 functions electric medical hospital bed with X-ray cassette
Product Description

| Product:4 functions electric medical hospital bed with X-ray cassette | Parameters | ||
| Item No. | ICUB-M3 | ||
| Size | Bed Panel | Length | 1950mm |
| Width | 910mm | ||
| Size: | Total Length | 2170mm (could be extented to 2350mm) | |
| Total Width | 1080mm | ||
| Height (From Floor) | 500-850mm | ||
| Back Plate Adjusting | 0-75° | ||
| Knee Section Adjusting | 0-45° | ||
| Bed panel extension | Manual/180mm | ||
| Safety load capacity | 240KGS | ||
| Function &configuration | Movement | Back plate up and down | |
| Knee section up and down | |||
| Back and knee section move together | |||
| overall lifting | |||
| Trendelunburg & reverse trendelunburg position | |||
| Manual CPR | |||
| Mattress Anti-Slipper | At sides and end of bedA | ||
| Drainage Hook | At sides of bed (4 in total) | ||
| IV Pole Hole | F:2, H:2 | ||
| Castors |
Germany TENTE castors, dia125mm,central control castor |
||
| Main Material | Frame | Cold rolled steel (painted with antibacterial powder) | |
| Bed head and end board,guardrail | ABS | ||
| Others | IV Pole | Optional | |
| Mattress | Optional | ||
| Dining Table | Optional | ||
| Oxygen Bottle Support | Optional | ||
* Angle dispaly on 4 pcs of guardrails
* All movements are controlled by LCE panel at bed end
* IV pole hole support at each corner, which also protect bed from collision
* Luxury central control castors, with locking device for licking, free moving and orientation function
* With CPR function, bed come back to level position for patient rescue
* Bed length could be extended, just need to pull out bed end board.
* Bed panel is made of HPL board, allow X-ray irradiation, cassette at back plate.
* 2 step adjustment at shank section, make shank at ease.
* ABS Bed head and end board, can be removed while shipping to save space and cost. Color can be changed as
customer requires.
* Load capacity no less than 300kg

* Whole bed can weigh, with error controlled in 1-3%.
* Bed weighing system can continuously detect subtle changes in patient weight.
* Back plate adjusting 65° ±5°
* Leg plate adjusting 45° ±5°
* Head and foot tilt 13° ±3°
* Lifting 500-860mm
* Back plate and knee section can lift at same time with one button
* 4 pieces of European style guardrails, can be hidden below bed panel good price
